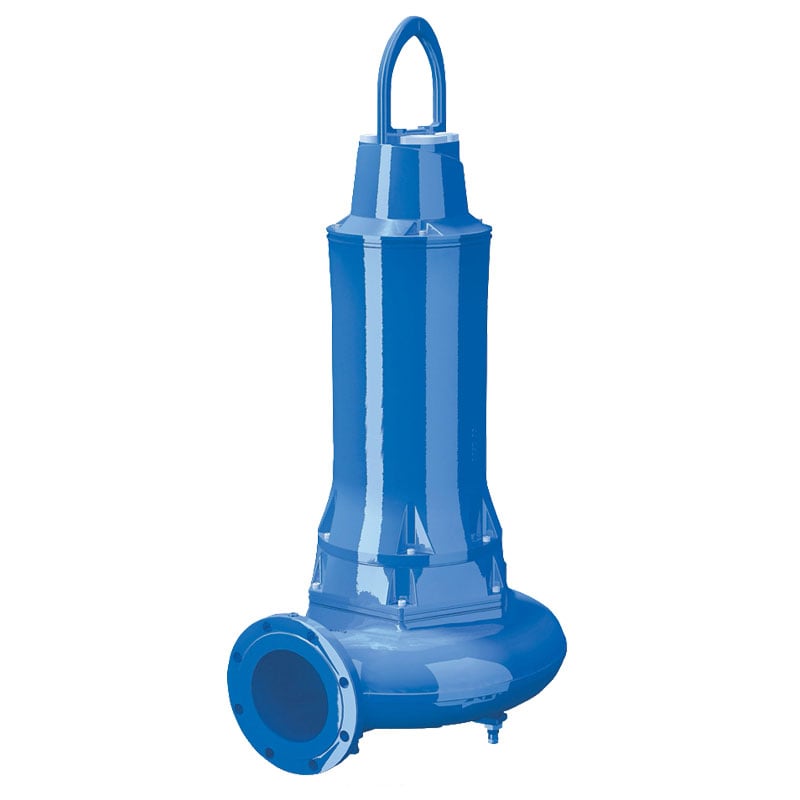

XFP301M Electric Submersible Wastewater pump

The XFP301M is a large cast-iron 12” electric submersible wastewater pump designed for use in a broad range of applications. Offering maximum flows of 440 litres per second and a maximum head of 36 metres, the unit is perfect for handling solids within municipal, utility and industrial sectors. Operated by a powerful 75kW motor, the XFP301M is compatible with guide rail installation on freestanding operation for instances where a large volume of liquid needs moving.

Key Features

Feature

Contrabloc Impeller provides

blockage-free operation

Premium Efficiency IE3 motor

for reduce energy consumption

Simple design allows minimal

service and maintenance

No vibration allows smooth

running and constant flows

Easily portable

so can be positioned quickly

Motor protection reduces

the risk of damage

Flexible configuration suitable

for both wet & dry installations

Simple installation

for instantaneous set-up

Product Specification

Additional information

Model	XFP301M
Motor type	415V (3-Phase) 50Hz
Motor rating	75kW
Running current	140A
Running speed	980 rpm
Discharge port	300mm
Suction inlet port	300mm
Maximum solids	127 x 110mm
EX Rated	Yes
Cooling jacket	Yes
Guide rail option	1955 x 1095mm
Transportable option	2155 x 1725mm
Weight	1470kg

Downloads

Accessories

75Kw VFD Panel
12″ W/A SUCTION HOSE X 3MTS
12″ 10FT STEEL PIPE
12″ FLANGED HIGH PRESSURE HOSE X 3MTS
12″ 45* BAUER BEND
12″ 90* BAUER BEND
12″ FLANGED 45* BEND
12″ FLANGED 90* BEND
12″ GATEVALVE
12″ NON-RETURN VALVE

Environments

Building and construction
Emergency sewage pumping
Bypass and over-pumping
Wastewater treatment sites
Flood restoration
Manufacturing and industry
Industrial processes
Agriculture
Utility industries
Commercial premises
