XFP100J CB2.315 Electric Submersible Wastewater Pumps

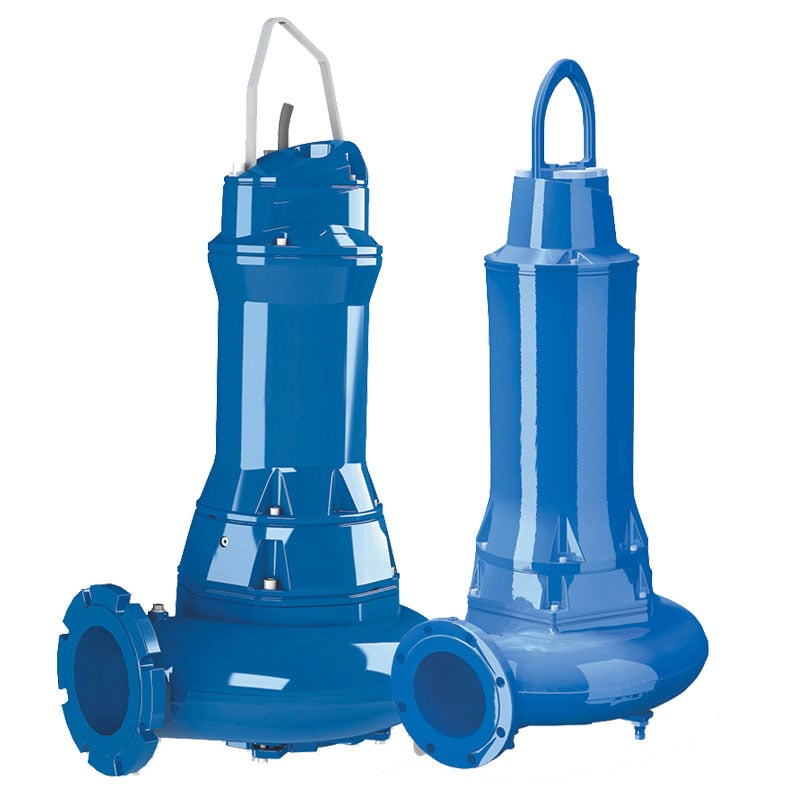

XFP100J Electric Submersible Wastewater Pumps

Sykes’ XFP100J 4” electric submersible wastewater pump has been designed for use on bypass, overpumping, sewage and emergency applications. This particular model comes in 30kW and 37kW versions and can handle solids of up to 80mm in diameter. Offering maximum flows of up to 110 litres per second and heads of up to 40 metres, the XFP100J is ATEX-rated which makes it suitable for use in explosion-proof zone II sites. The pump is compatible with a guide rail or can operate freestanding. A range of adaptors allow the unit to be modified to replace pumps from other manufacturers, making it a perfect replacement solution.

Key Features

Feature

Contrabloc Impeller provides

blockage-free operation

Double mechanical seals

for maximum abrasive resistance

Premium Efficiency IE3 motor

for reduce energy consumption

Simple design allows minimal

service and maintenance

Easily portable

so can be positioned quickly

Motor protection reduces

the risk of damage

Compact

so fits small spaces

No vibration allows smooth

running and constant flows

Product Specification

Additional information

Model	XFP100J 315 / XFP100J 330
Motor type	Motor type
Motor rating	30kW / 37kW
Max power input	32kW / 39.4kW
Running current	54.6A / 68.1A
Discharge spigot	4"
Maximum solids	80mm
EX Rated	Yes
Cooling jacket	Yes
Guide rail option	1405mm / 1485mm
Free standing Height	1555mm / 1635mm
Maximum Width	1000mm
Minimum Width	600mm
Weight	640kg / 670kg

Downloads

Accessories

VARIABLE PANEL 18Kw – 56Kw
4″ X 3M W/A BAUER HOSE
4″ 20FT W/A SUCTION HOSE BAUER
4″ 20FT POLYTUBE
4″ X 6M HELIFLEX PVC BAUER
4″ X 6MTR STEEL BAUER PIPE
4″ 45* BAUER BEND
4″ 90* BEND
4″ GATEVALVE
4″ NON RETURN VALVE

Environments

Building and construction
Emergency
Municipal treatment sites
Wastewater pumping networks
Sewage
Manufacturing and industry
Industrial processes
Commercial drainage
Food preparation processes
Agriculture
Utility industries
