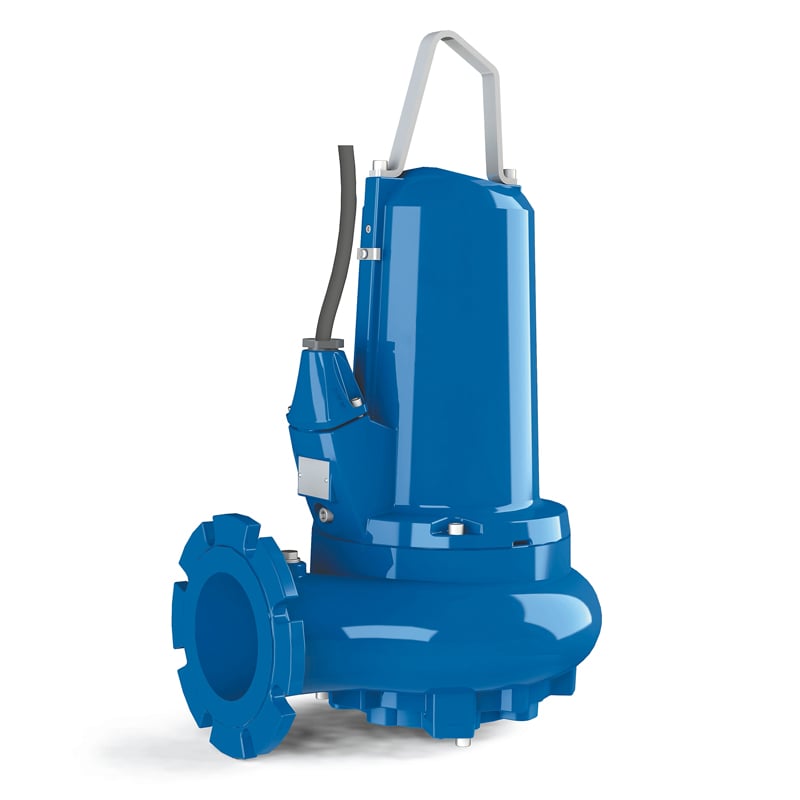

XFP100E Electric Submersible Wastewater pump

These cast-iron, robust Sulzer ABS electric submersible wastewater pumps offer a smooth-running pumping solution designed for a range of environments including utilities, industrial, infrastructural and others. This particular model is known for its long-term reliability and versatility for specialist applications. Capable of delivering maximum flows of up to 60 litres per second and heads of up to 24 metres, these popular pumps handle solids of up to 80mm and can be adapted to any guide rail arrangement you have in place. When used with an automatic control feature it can guarantee the pump only runs when required, conserving energy throughout a project.

Key Features

Feature

Contrabloc Impeller provides

blockage-free operation

Premium Efficiency IE3 motor

for reduce energy consumption

Simple design allows minimal

service and maintenance

No vibration allows smooth

running and constant flows

Easily portable

so can be positioned quickly

Motor protection reduces

the risk of damage

Compact

so fits small spaces

Simple installation

for instantaneous set-up

Product Specification

Additional information

Model	XFP100E CB1.1 / XFP100E CB1.3
Motor type	415V
Motor rating	9kW / 6kW
Max power input	9kW / 6kW
Running current	18.1A / 13.6A
Discharge spigot	4"
Maximum solids	80mm
EX Rated	Yes
Cooling jacket	Yes
Guide rail option	835mm / 765mm
Free standing	905mm / 835mm
Maximum Width	835mm
Minimum Width	490mm
Weight	190kg / 180kg

Downloads

Accessories

VARIABLE PANEL 1KW TO 15KW
4″ X 3M W/A BAUER HOSE
4″ 20FT W/A SUCTION HOSE BAUER
4″ 20FT POLYTUBE
4″ X 6M HELIFLEX PVC BAUER
4″ X 6MTR STEEL BAUER PIPE
4″ 45* BAUER BEND
4″ 90* BEND
4″ GATEVALVE
4″ NON RETURN VALVE

Environments

Building and construction
Emergency sewage pumping
Bypass and over-pumping
Wastewater treatment sites
Flood restoration
General maintenance
Industrial processes
Commercial premises
Agriculture
Utility industries
