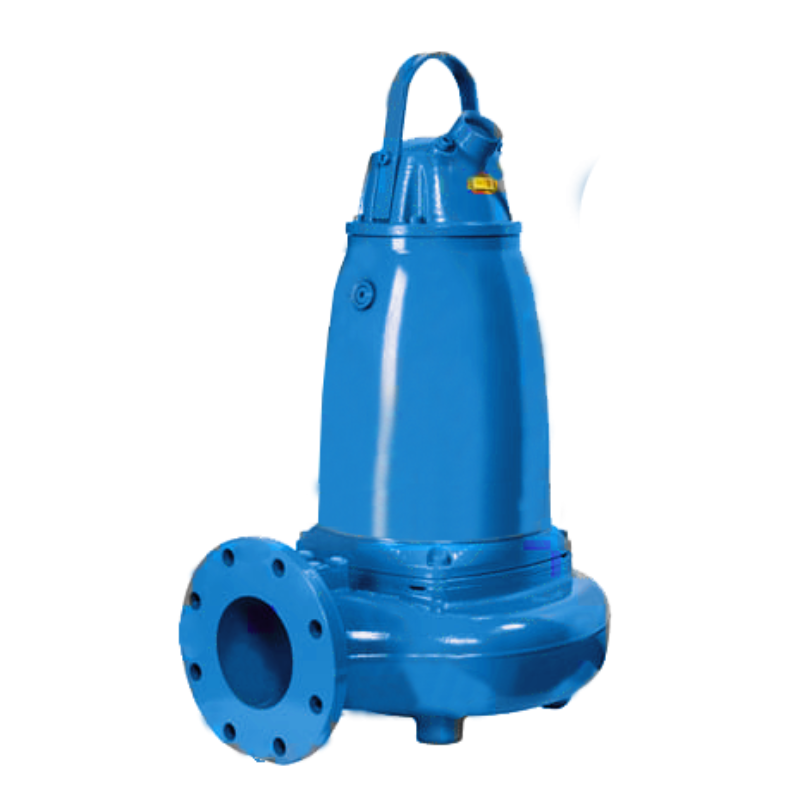

NX3171 SH submersible wastewater pump

The NX3171SH is a 22kW electric submersible wastewater pump that combines reliability with high performance output and is specifically designed for utilities and water contractors. Ideal for high head applications or where larger flows are required, this model can deliver heads of up to 69 metres and maximum flows of 47 litres per second. Featuring industry-leading technologies and components, our NX3171SH guarantees impressive pumping capacities and can be connected to any guide rail adaption – underlining its flexibility in a broad range of scenarios.

Key Features

Feature

Flexible and modular design

requiring minimal service and maintenance

Robust and reliable ensuring

suitability to challenging environments

Efficient operation allowing significant

energy savings for the end user

Motor protection reducing the risk

of damage and breakdowns

Non-clog performance

for long-term projects

Mechanical self-cleaning design

permitting high sludge concentration

Compact pumps intended

for use in small spaces

Excellent portability

for quick installation

Product Specification

Additional information

Model	NX3171 SH
Motor type (V)	415 (3-phase) 50Hz
Motor rating (kW)	22
Running current (A)	38
Running speed	2,925 rpm
Discharge port (mm)	100
Suction inlet port (mm)	150
EX rated	Yes
Cooling jacket	Yes
Weight (kg)	336
Dimensions (mm)	1,210 x 660

Downloads

Accessories

PUMP STAND
CLAWS FOR SLIDE RAIL INSTALLATION
20 METRE CABLE

Environments

Building and construction
Emergency
Municipal treatment sites
Wastewater pumping networks
Sewage
Industrial processes
Commercial drainage
Food preparation processes
Agriculture
Utilities
General maintenance
High head applications
