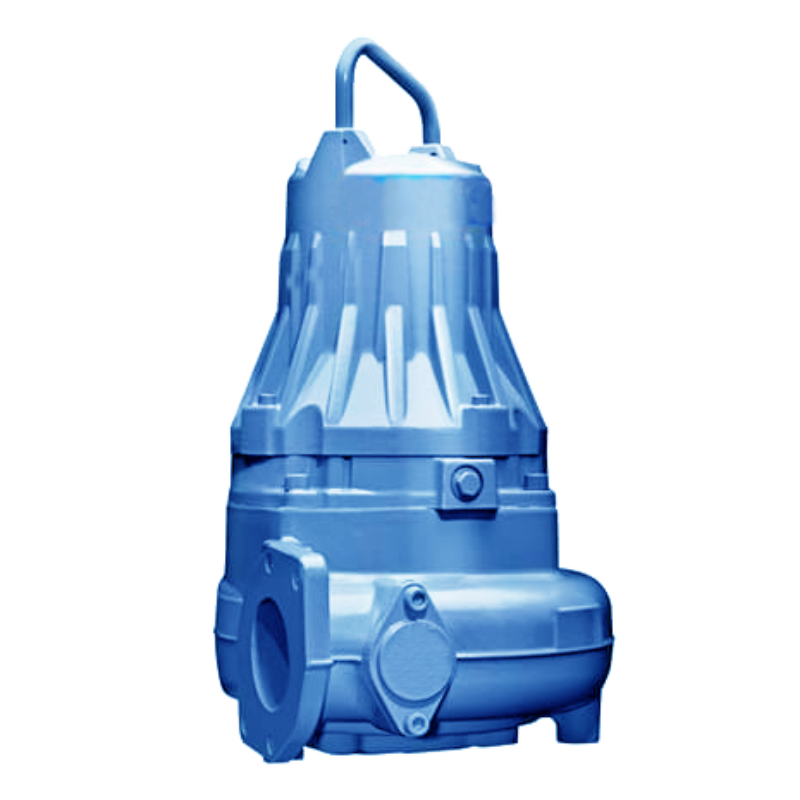

NX3085 SH submersible wastewater pump

The robust NX3085 SH electric submersible wastewater pump is designed for medium head applications and specifically tailored to the needs of water and utility companies and contractors. This small 2.4kW wastewater submersibles delivers heads of up to 25 metres and maximum flows of 20 litres per second. Our NX3085 SH models incorporate the latest technology to guarantee optimum performance levels. This unit is compatible with all guide rail adaptions, with its compact chassis enabling seamless deployment in challenging, tight spaces.

Key Features

Feature

Flexible and modular design

requiring minimal service and maintenance

Robust and reliable ensuring

suitability to challenging environments

Efficient operation allowing significant

energy savings for the end user

Motor protection reducing the risk

of damage and breakdowns

Non-clog performance

for long-term projects

Mechanical self-cleaning design

permitting high sludge concentration

Compact pumps intended

for use in small spaces

Excellent portability

for quick installation

Product Specification

Additional information

Model	NX3085 SH
Motor type (V)	400 (3-phase) 50Hz
Motor rating (kW)	2.4
Running current (A)	4.8
Running speed	2,870 rpm
Discharge port (mm)	80
Suction inlet port (mm)	100
EX rated	Yes
Cooling jacket	No
Weight (kg)	76
Dimensions (mm)	500 x 440

Downloads

Accessories

PUMP STAND
CLAWS FOR SLIDE RAIL INSTALLATION
20 METRE CABLE

Environments

Building and construction
Emergency
Municipal treatment sites
Wastewater pumping networks
Sewage
Industrial processes
Commercial drainage
Food preparation processes
Agriculture
Utilities
General maintenance
High head applications
