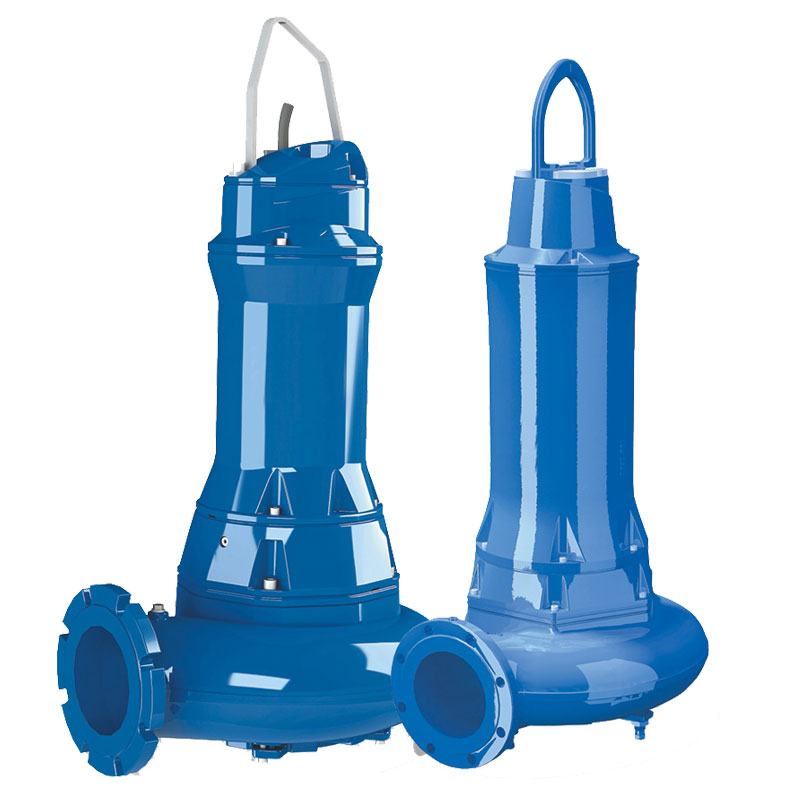

AFPK1552/XFP150M 55kW Electric Submersible Wastewater Pumps

These large and durable electric 6” submersible wastewater pumps offer a smooth-running pumping solution designed for applications within the municipal, utility and industrial sectors. Powered by a 55kW high efficiency motor, these pumps can deliver maximum flows of up to 138 litres per second, heads of up to 60 metres and can be adapted to any guide rail arrangement you have in place. An automatic control feature guarantees that the pumps run only when required, conserving energy throughout a project.

Key Features

Feature

Contrabloc Impeller provides

blockage-free operation

Double mechanical seals

for maximum abrasive resistance

Premium Efficiency IE3 motor

for reduce energy consumption

Simple design allows minimal

service and maintenance

Easily portable

so can be positioned quickly

Motor protection reduces

the risk of damage

Flexible configuration suitable

for both wet & dry installations

No vibration allows smooth

running and constant flows

Product Specification

Additional information

Model	AFPK1552 / XFP150M CB2.
Motor type	415V
Motor rating	55kW
Max power input	58.1kW
Running current	94.4A / 94.1A
Discharge spigot	6"
Maximum solids	77 x 52mm
EX Rated	Yes
Cooling jacket	Yes
Guide rail option Height	1450mm / 1740mm
Free standing Height	1650mm / 1940mm
Maximum Width	1260mm / 1265mm
Minimum Width	850mm
Weight	995kg / 1020kg

Downloads

Accessories

VARIABLE PANEL 18KW TO 56KW
6″ 10FT W/A SUCTION HOSE BAUER
6″ W/A SUCTION HOSE X 6MTS
6″ 20FT POLYTUBE
6″ X 6M HELIFLEX HOSE BAUER
6″ 10FT STEEL PIPE
6″ 20FT STEEL PIPE
6″ 45* BAUER BEND
6″ 90* BEND
6″ GATEVALVE
6″ NON-RETURN VALVE
ROAD RAMP C/W 6″ PN16 FLANGES
ROAD RAMP WIDE C/W 6″ PN16 FLANGES
ROAD CROSSING C/W 8″ PN16 FLANGES

Environments

Building and construction
Emergency
Municipal treatment sites
Wastewater pumping networks
Sewage
Manufacturing and industry
Industrial processes
Commercial drainage
Food preparation processes
Agriculture
Utility industries
