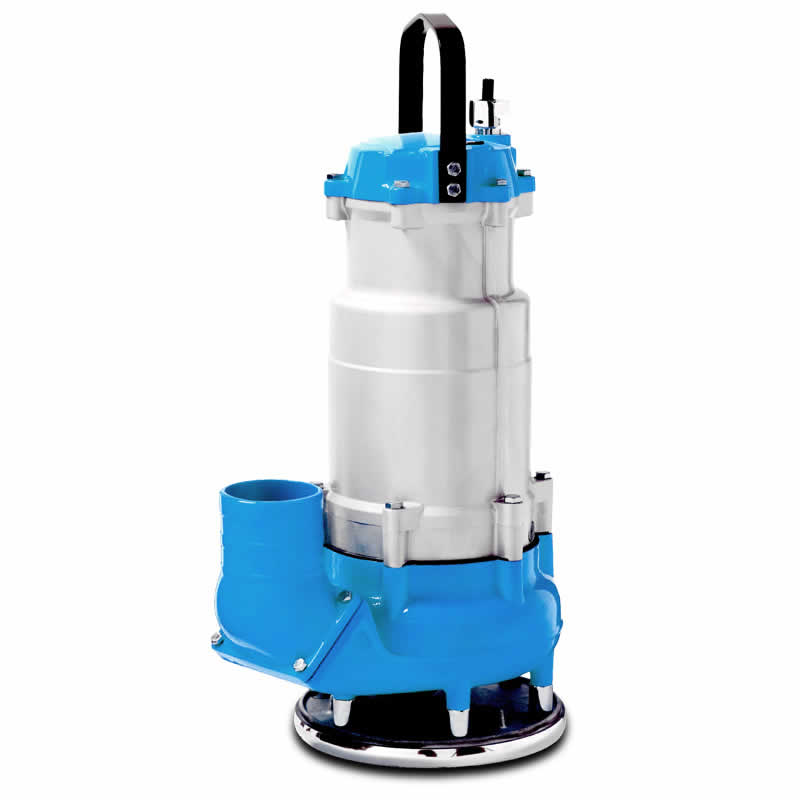

SP20, SP30, SP50 and SP80 Submersible Sludge Pumps

The SP range of electric submersible sludge pumps has been designed to deliver impressive performances in instances where there is a need to pump fluids with a greater viscosity than water. Unlike larger units, our SP pumps are perfect for areas where space is limited because of their small dimensions and lightweight. Capable of producing flows of up to 28 litres per second and maximum heads of 33 metres, these units are regularly utilised when sumps need emptying or bypass pumping is required. Each unit is fitted with a 20m cable enabling flexible installation and can operate with an automatic stop/start feature ensuring the pumps only operate when necessary – reducing energy usage.

Key Features

Feature

Spiral-grooved plate and cutter

provides blockage-free operation

Premium Efficiency IE3 motor

for reduced energy consumption

Simple design

allows minimal service and maintenance

No vibration

allows smooth running and constant flows

Easily portable

so can be positioned quickly

Motor protection

reduces the risk of damage

Compact

so fits small spaces

Simple installation

for instantaneous set-up

Product Specification

Additional information

Model	SP20 / SP30 SP50 / SP80
Motor type (V)	415 / 415
Motor rating (kW)	1.3 / 3.3 / 5.2 / 8
Max power input (kW)	1.7 / 3.9 / 6.2 / 9.4
Running Current (Amps)	4.2 / 6.8 / 11 / 18
Max solids (mm)	40 / 60 / 65 / 65
Discharge Spigot	3" Bauer / 3" Bauer3" / Bauer / 4" Bauer
Dimensions H x W (mm)	700 x 320 / 700 x 320 / 760 x 410 / 810 x 560
Weight (kg)	29 / 34 / 52 / 67

Downloads

Accessories

PLC2000/SP50 LEVEL CONTROL
VARIABLE PANEL 1KW TO 15KW
3″ X 6M W/A SUCTION HOSE BAUER
3″ X 6M POLYTUBE
3″ X 6M HELIFLEX PVC BAUER HOSE
3″ 90* BEND
3″ GATEVALVE
3″ NON RETURN VALVE
ROAD RAMP C/W 6″ PN16 FLANGES
PLC3000/SP80 LEVEL CONTROL
VARIABLE PANEL 1KW TO 15KW
4″ X 6M W/A SUCTION HOSE BAUER
4″ X 6M POLYTUBE
4″ X 6M HELIFLEX PVC BAUER
4″ X 6MTR STEEL BAUER PIPE
4″ 45* BAUER BEND
4″ 90* BEND
4″ GATEVALVE
4″ NON RETURN VALVE
ROAD RAMP C/W 6″ PN16 FLANGES

Environments

Building site drainage and wastewater diversions
Effluent Control
Wastewater process systems
Clean and dirty water pumping
Tunnelling
Food, fruit and vegetable preparation processes
Power stations
Agriculture
Utility industries
Dirty and nuisance water pumping
Industrial processes
