H100S Hydraulic Submersible Pump

H100S Hydraulic Submersible Pump

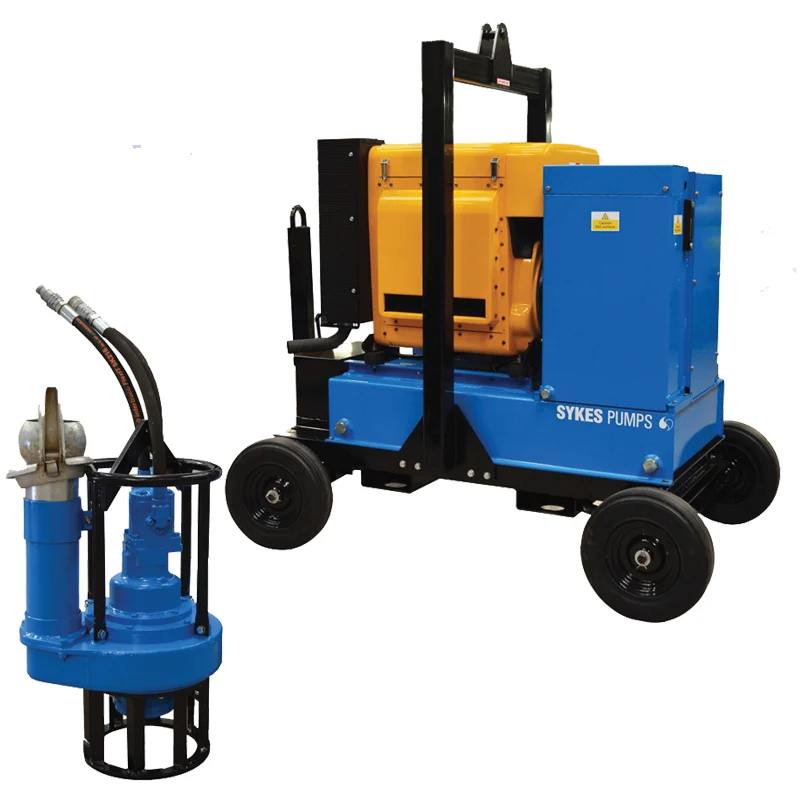

The Sykes Hydraset range is made up of three vital components – the Hydrapak, Hydrapump and Hydrahose. This equipment represents an ideal alternative to diesel driven pumps and is perfect for environments with no accessible power supply. Its centrifugal pump is driven by an internal hydraulic motor and powered by a semi-silenced engine – making quiet operation possible.

Key Features

Feature

Feature

Highly efficient solids handling

Easy tow

Silenced diesel engine

Fully electric start

Fully portable

Cost effective pumping

Hard wearing

No suction lift restrictions

Product Specification

Additional information

Performance	Max head:- 46 m [br] Max flow:- 38 l/s [br] Max solid:- 70mm
Discharge	4” Bauer
Weight	Pump End 55 kg [br] Powerpack 995 kg
Dimensions	Pump End 465 x 350 x 745 [br] Powerpack 1900 x 1100 x 1720
Hydraulic lines	20 metres
Fuel Tank Capacity	145 litres
Fuel Consumption	9 litres/hour
Noise level	@ 7m = 75 dBA

Downloads

Accessories

4″ X 3M W/A BAUER HOSE
4″ 20FT W/A SUCTION HOSE BAUER
4″ 20FT POLYTUBE
4″ X 6M HELIFLEX PVC BAUER
4″ X 6MTR STEEL BAUER PIPE
4″ 45* BAUER BEND
4″ 90* BEND
4″ GATEVALVE
4″ NON RETURN VALVE
ROAD RAMP C/W 6″ PN16 FLANGES
ROAD RAMP WIDE C/W 6″ PN16 FLANGES
ROAD CROSSING C/W 8″ PN16 FLANGES
SETTLEMENT TANK
SYKES SILT AWAY

Environments

Clean and dirty water
Slurry
Sewage
Waste water
Sludge
Ground water control
