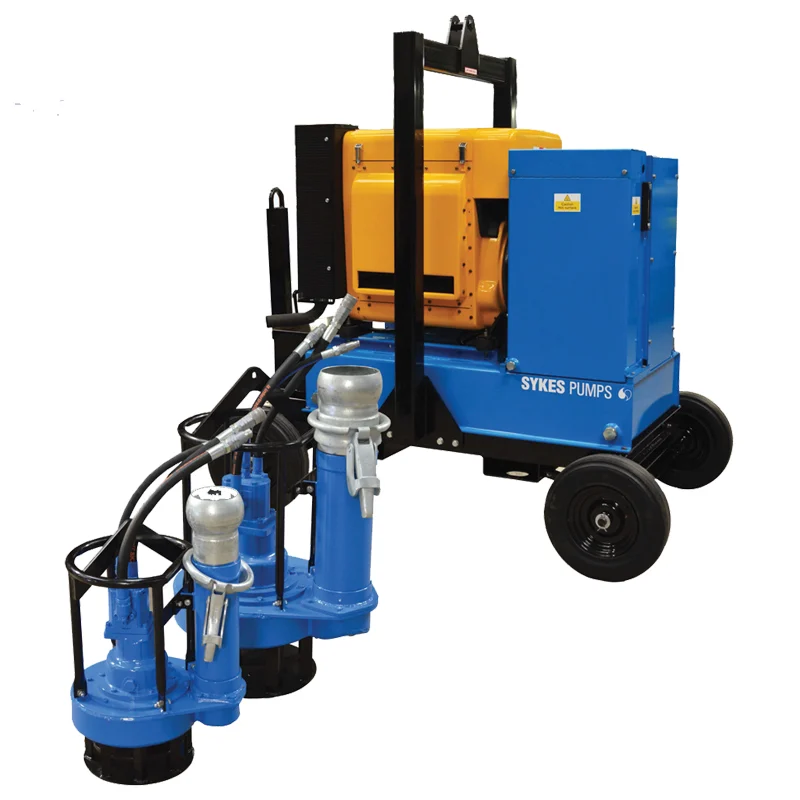

H100/H150 Hydraulic Submersible Pump

H100 & H150 Hydraulic Submersible Pump

The Sykes Hydraset range is made up of three vital components – the Hydrapak, Hydrapump and Hydrahose. This equipment represents an ideal alternative to diesel driven pumps and is perfect for environments with no accessible power supply. Its centrifugal pump is driven by an internal hydraulic motor and powered by a semi-silenced engine – making quiet operation possible.

Key Features

Feature

Feature

Highly efficient

solids handling

Easy tow

Silenced

diesel engine

Fully electric start

Fully portable

Cost effective pumping

Hard wearing

No suction lift restrictions

Product Specification

Additional information

Model	H100 / H150
Performance	Max head:- 40 m [br] Max flow:- 62 l/s [br] Max solid:- 38mm [br] Max head:- 22 m [br] Max flow:- 95 l/s [br] Max solid:- 65mm
Discharge	4” Bauer / 6” Bauer
Weight	Pump End 51 kg – Powerpack 995 kg [br] Pump End 105 kg – Powerpack 995 kg
Dimension	H100 – Pump end: 465 x 350 x 745 mm, H150 – Pump end: 650 x 500 x 970, Powerpack: 1900 x 1100 x 1720 (L x W x H)
Hydraulic lines	20 metres
Fuel Tank Capacity	145 litres
Fuel Consumption	9 litres/hour
Noise level	@ 7m = 75 dBA

Downloads

Accessories

3 LINE SET x 20M
DRIP TRAY 2440MM X 1525MM
DRIP TRAY 2058MM X 1525MM
RETAIL GAS OIL
BUNDED FUEL TANK 2000 LITRE
BUNDED FUEL TANK 2800 LITRE
BUNDED FUEL TANK 3000 LITRE
5M HP FUEL LINE

Environments

Clean and dirty water
Slurry
Sewage
Waste water
Sludge
Ground water control
