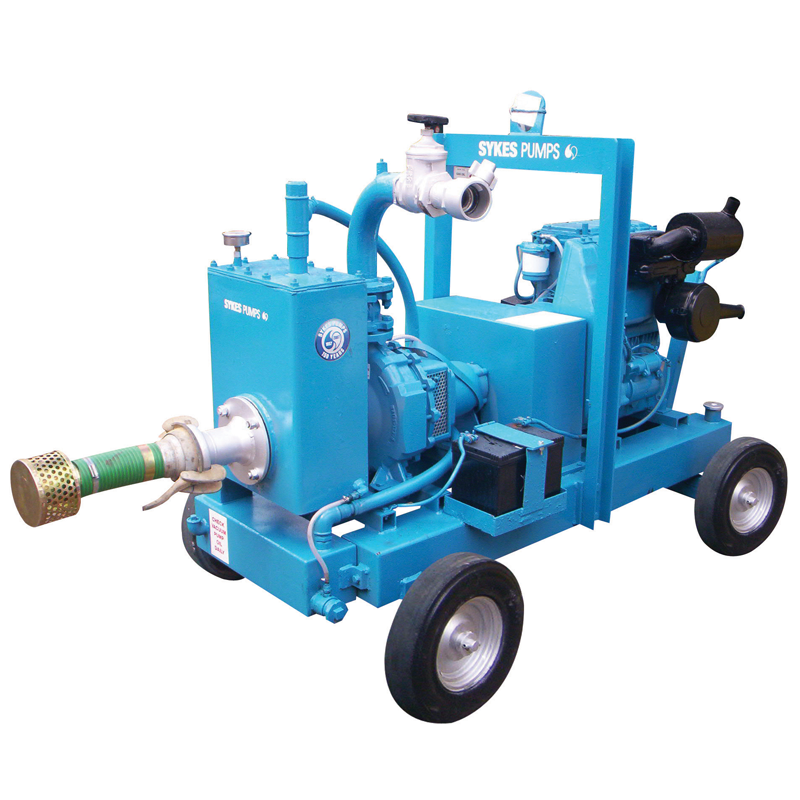

HP80

The HP80 is a high performance pump used for applications where standard pump pressures are inadequate. This high pressure pump is suitable for a range of applications from jetting to dust suppression and temporary fire pump duties. The HP80 is one of our smallest high performance pumps and among the most cost-efficient pumps of its kind. Giving a maximum head of 90 metres and flows of up to 21 litres per second, this pump features the Sykes Univac vacuum priming system for rapid automatic priming and re-priming from dry.

Key Features

Feature

Hours of

unattended operations use

Hard-wearing parts

aplications

Automatic priming and re-priming

for maximum efficiency

Compact and manoeuvrable

for simple redeployment

Super silent

option available

Electric start

for swift functionality

Economical operation

for greater fuel efficiency

Available on a 4 wheeled

site chassis for swift delivery

Product Specification

Additional information

Performance	Max head: 90 m Max flow: 21 l/s
Weight	856kg without fuel
Dimensions (L x W x H)	1800 x 1070 x 1460 mm Typical length including tow bar 2400
Noise level	@ 1m = 94 – 98 dBA [br] @ 7m = 77 – 82 dBA
Fuel capacity	90 litres
Pipe Connections	Suction: 4" Table D or 3" Bauer Discharge: 2½" Instantaneous adapter or 3" BSP
Fuel Consumption	Full load @ 2800 rpm: 6.27 litres/hour
Energy Efficient duty point	Fuel Consumption @ 2500 rpm: 4.08 litres/hour

Downloads

Accessories

2.5 INCH X 60FT JETTING HOSE
JETTING STRAINER
3″ 20FT W/A SUCTION HOSE BAUER
3″ 20FT POLYTUBE
BUNDED FUEL TANK 1000 LITRE
BUNDED FUEL TANK 2000 LITRE
BUNDED FUEL TANK 3000 LITRE
RETAIL GAS OIL
DRIP TRAY 2440MM X 1525MM
DRIP TRAY 2058MM X 1525MM

Environments

Environmental
Emergency pumping services
Docks, ports and harbours
Refineries
Water and waste treatment
Local authorities
Film production and events
Offshore and float outs
Quarries and mines
Building and construction
Manufacture and industry
Power stations
Tunnelling
Agriculture
