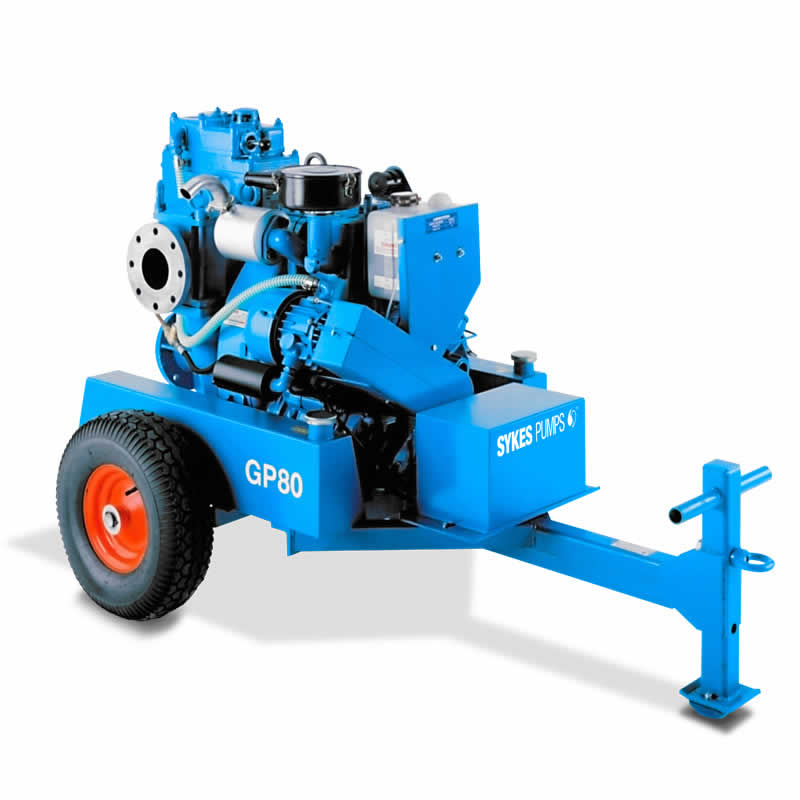

GP 80 General Purpose Pump

The GP 80 is typically a contractor’s general purpose pump capable of delivering flows up to 34 litres per second and a maximum head of 24 metres. Used wherever there’s a need for reliable automatic self-priming, the GP 80 incorporates the unique Sykes Univac vacuum system. This enables the pump to prime and re-prime fully automatically from dry. The GP 80 is powered by a 6.7kW Lister engine and is available on a robust 2 wheeled site chassis.

Key Features

Feature

Hours of unattended operation

for continuous use

Hard-wearing parts

for robust applications

Automatic priming and re-priming

Compact and manoeuvrable

for simple redeployment

Max solid

40 mm handling

Electric start

for swift functionality

Economical operation

for greater fuel efficiency

Standard open-set unit

Product Specification

Additional information

Performance	Max head: 24 m [br]Max flow: 34 l/s [br]Max solid: 40 mm
Weight	455 kg with fuel [br]425 kg without fuel
Dimensions (L x W x H)	1700 x 1190 x 1093 mm
Noise level	@ 1m = 95-98 dBA [br]@ 7m = 78 – 82 dBA
Fuel capacity	35 litres. Max 24 hours with cleaning and flushing facilities
Pipe Connections	Suction: 4" table D [br]Discharge: 4" table D [br]Bauer couplings option: 3"
Fuel Consumption	Full load @ 1800 rpm:- 1.9 litres/hour
Energy Efficient duty point	Fuel Consumption @ 1500 rpm: 0.61 litres/hour

Downloads

Accessories

3″ SPLIT INTAKE
3″ 20FT W/A SUCTION HOSE BAUER
3″ 20FT POLYTUBE
3″ X 6M HELIFLEX PVC BAUER HOSE
3″ LAYFLAT HOSE PER METRE
3″ BLUE LAYFLAT X 25M CW BAUERS
3″ 90* BEND
3″ GATEVALVE
3″ NON RETURN VALVE
BUNDED FUEL TANK 1000 LITRE
RETAIL GAS OIL
DRIP TRAY 2440MM X 1525MM
DRIP TRAY 2058MM X 1525MM
ROAD RAMP C/W 6″ PN16 FLANGES
ROAD RAMP WIDE C/W 6″ PN16 FLANGES

Environments

Environmental
Emergency Pumping Services
Docks, Ports and Harbours
Refineries
Water and Waste Treatment
Local Authorities
Over-pumping
Offshore and Float Outs
Quarries and Mines
Building and Construction
Manufacture and Industry
Power Stations
Tunnelling
Construction projects
