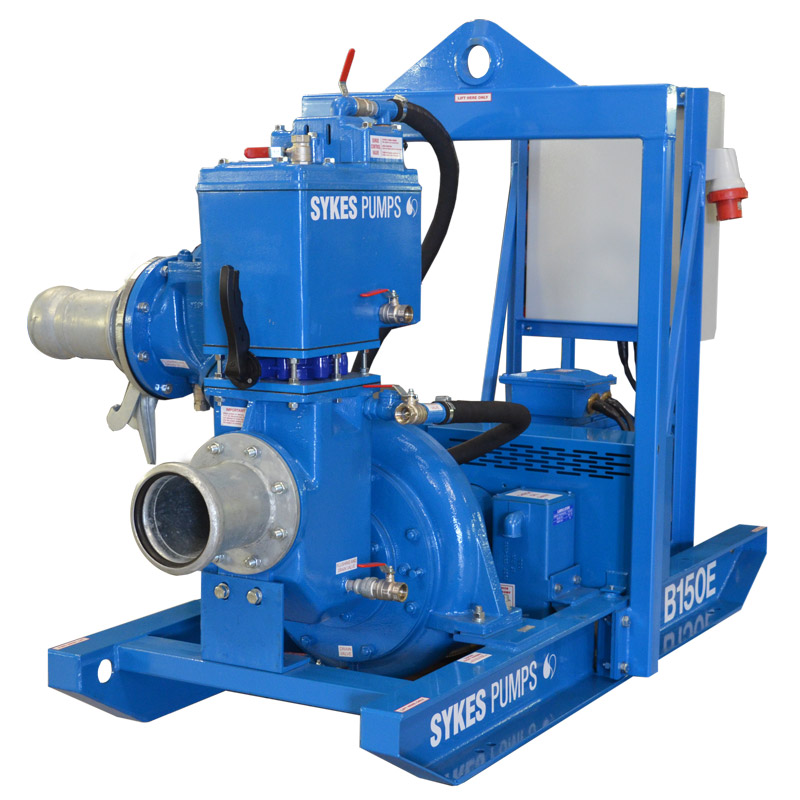

The B150E pump has been specifically designed to pump slurries and is known for its reliability when handling bentonite and other challenging liquids. This model features an electric motor so does not require a fuel tank, making it much lighter and easier to deploy where required. An open pump end allows easy cleaning and flushing where necessary and simple maintenance. Featuring the Sykes Univac priming system, this unit can prime and re-prime from dry and deliver maximum flows of up to 78 litres per second and a maximum head of 27 metres.
Feature
for quieter functionality
of unattended operation
safety precaution
up to 52 mm
cast iron parts
| Performance | Max head:- 27 m [br] Max flow:- 78 l/s [br] Max solid:- 52 mm |
|---|---|
| Weight (kg) | 1050kg |
| Dimensions (L x W x H) | 2100 x 1000 x 1560 mm |
| Noise level | @7m= 68 dBA |
| Pipe Connections | Suction:- 6" table D [br] Discharge:- 6" table D [br] Bauer couplings option 6" |
| Motor | 30 kW IE3 motor 415v 3ph 50 Hz |
6″ SPLIT INTAKE
6″ 10FT W/A SUCTION HOSE BAUER
6″ W/A SUCTION HOSE X 6MTS
6″ 20FT POLYTUBE
6″ X 6M HELIFLEX HOSE BAUER
6″ 10FT STEEL PIPE
6″ 20FT STEEL PIPE
