Immediate Despatch

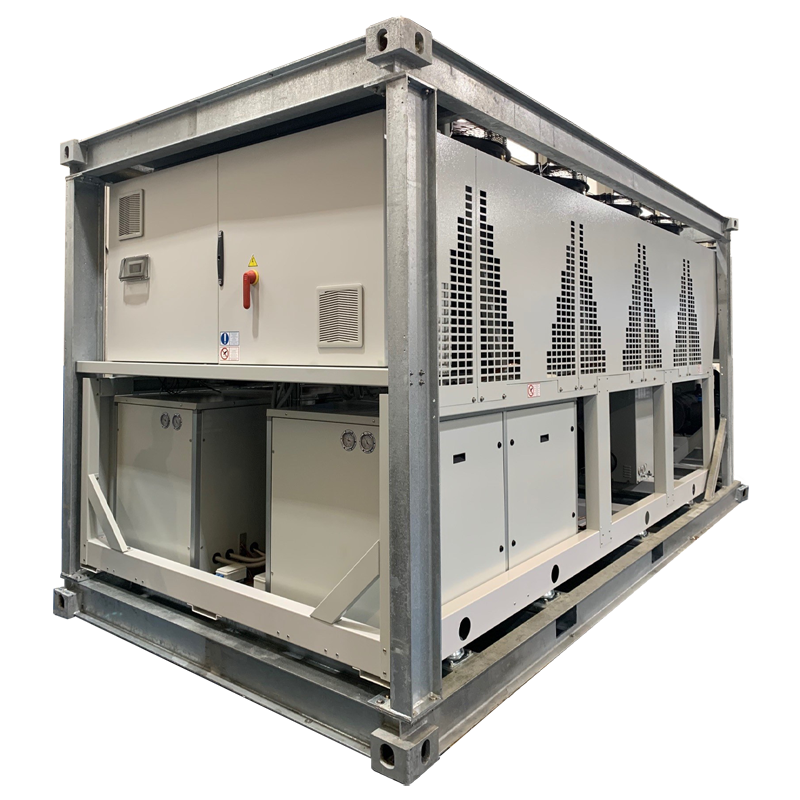

The 550kW Series 2 chiller is one of the largest fluid chillers in the Andrews range and has been designed for industrial processes requiring large volumes of chilled water. Operating on R32 gas, this chiller offers a more environmentally friendly medium for high capacity cooling projects and is significantly more energy efficient than similar products available elsewhere. Ideal for customers looking to reduce their carbon footprint, the 500kW Series 2 unit also costs less to operate than many other models of equivalent capacity. This robust chiller has been manufactured with a multitude of applications in mind and can reduce temperatures to as low as -5⁰C.
Feature
will stand up to the rigours of industrial use
down to as low as -5⁰C
reducing running costs
low noise level of 64dBA @ 10 metres
for simple and fast installation
can be positioned more easily
facilitates transport and deployment
energy efficient
| Nominal cooling duty | 550kW |
|---|---|
| Power supply | 415V 3ph +E 50 Hz Run 346 A |
| Plug type | Power lock connections (4 x 120mm) |
| Noise level | 64 dBA / 70 LWA @ 10 metres |
| Weight | 4,650 kg |
| Dimensions (L x W x H) | 4,940 x 2,440 x 2,590 mm |
| Control | Automatic programmer |
| Average power consumption | 107 kW/h |
| Generator size | 400 kVA |
| Water connections | 100 mm (4" bauer) |
| Nominal water flow | 24.8 l/s |
QTY 4 X 120MM POWER CABLE SINGLE CORE 415V (PER M)
6M X 100MM HOSE BAUER OR DN100 PN16 FLG
FAN COILS/ AHU’S
MANIFOLDS
SYSTEM CONNECTION FITTINGS
PLATE HEAT EXCHANGER
BUFFER TANK
Petrochemicals and refineries
Body storage
Hotels and resorts
Emergency chillers
Computer and server rooms
District cooling
Pharmaceuticals
Food and beverages
Hospitals and healthcare
