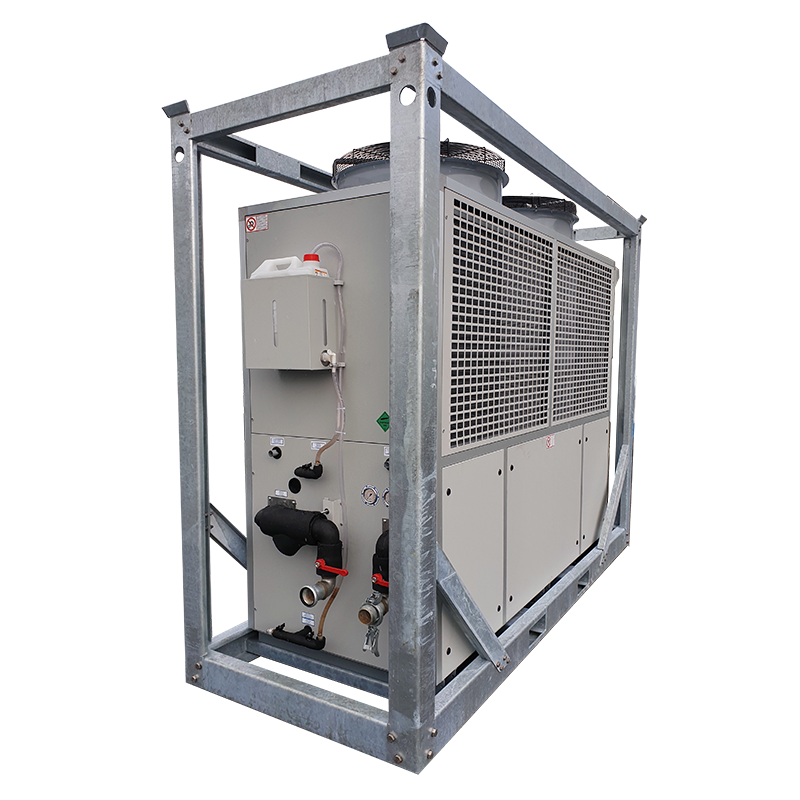

Our 100kW series 2 fluid chiller is a powerful chiller that has been specifically designed for reducing temperatures to as low as -5°C in industrial and commercial applications. Mounted on robust base plates, this particular model guarantees convenience and can be transported and positioned with minimal disruption. The 100kW series 2 chiller can be connected to an existing cooling system or used in conjunction with air handlers from our expansive range, underlining its suitability to a multitude of applications. Combining large volumes of cooling with economical power consumption, this chiller is ideal for scenarios where continuous operation is required and is commonly used in hospitals, server rooms and mortuaries.
Feature
facilitates transport and deployment
down to as low as -5C
reducing running costs
for simple and fast installation
can be positioned more easily
will stand up to the rigours of industrial use
| Nominal cooling duty | 100 kW |
|---|---|
| Power supply | 415 V 3 ph N+E 50 Hz Run 61 A |
| Plug type | BS4343 63 A 5 pin |
| Noise level (max) | 74 dBA @ 10 metres |
| Weight | 1,570 kg |
| Dimensions (L x W x H) | 3,250x 1,250 x 2,450 mm |
| Control | Automatic programmer |
| Average power consumption | 19 kW/h |
| Generator size | 75 kVA |
| Water connection | 50 mm / 2" bauer |
| Nominal water flow | 5.5 l/s |
10M EXT LEAD 5 PIN 63A 415V 25MM DIA
20M EXT LEAD 5 PIN 63A 415V 25MM DIA
6M X 50MM HOSE WITH BAUER COUPLINGS (2”)
FAN COILS/ AHU’S
MANIFOLDS
SYSTEM CONNECTION FITTINGS
PLATE HEAT EXCHANGER
REMOTE CHANGE OVER (HEAT PUMP ONLY)
Body storage
Process cooling
Manufacturing and industry
Hotels and resorts
Emergency chillers
Marquees
Building and construction
Pharmaceuticals
Hospitals and healthcare
Food and beverages
