Immediate Despatch

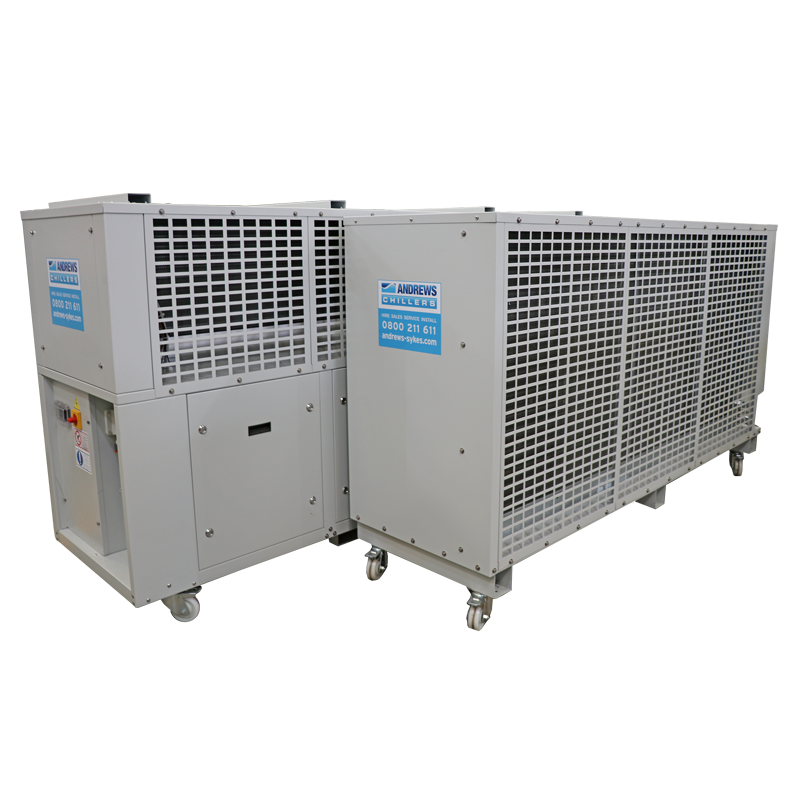

The Fast Chill 90 Series 2 is a robust and high-performing chiller that has been specifically designed for industrial applications where it is necessary to reduce temperatures to as low as -10⁰C. The product runs on the R454C gas refrigerant, which has a low global warming potential of 148 (GWP) and falls below the threshold value outlined in F-Gas regulations. Each unit incorporates a hot gas defrost system which pre-warms the water prior to draining, enabling an efficient heat exchange with any formed ice. Delivering a nominal cooling capacity of 26.1kW and significant airflows of 10,730m³/h, the Fast Chill 90 Series 2 is perfect for scenarios where specialist high capacity cooling is essential. The product features an automatic thermostat for accurate temperature control, and is widely used to provide large volume air conditioning to manufacturing processes and body storage areas.
Feature
down to -10⁰C
suitable for noise-sensitive areas
ideal for emergencies
low running costs
environmentally friendly
designed for use anywhere
affording customer peace of mind
pre-charged glycol lines of up to 30m
| Nominal cooling duty | 26.1 kW |
|---|---|
| Air flow (max) | 10,730 m³/h |
| Plug type | BS4343 63 A 5 pin |
| Power supply | 415 V 3 ph N+E 50 Hz Run 43 A |
| Indoor noise level (max) | 60 dBA / 66 LWA @ 3 metres |
| Outdoor noise level (max) | 71 dBA / 73 LWA @ 1 metre |
| Indoor weight | 530 kg |
| Outdoor weight | 295 kg |
| Indoor dimensions (L x W x H) | 2,700 x 750 x 1,300 mm |
| Outdoor dimensions (L x W x H) | 2,355 x 700 x 1,365 mm |
| Control | Automatic thermostat |
| Average power consumption | 17.8 kW/h |
| Line length | 15 metres (max = 30 metres) |
| Operating temp range | -10⁰C to + 30⁰C |
| Generator size | 40 kVA |
20M x 5 PIN 63 AMP 415V EXTENSION LEAD 16MM DIA
10M x 5 PIN 63 AMP 415V EXTENSION LEAD 16MM DIA
15M CONECTING LINES (MAX 2 SETS)
CONDENSATE HOSE
FASTCHILL 90 OUTDOOR UNIT
Cold stores
Fresh meat cold rooms
Temporary body storage
Archive document storage
Refrigerated warehouse
Cellars
Standby for cold stores
Industrial processes
