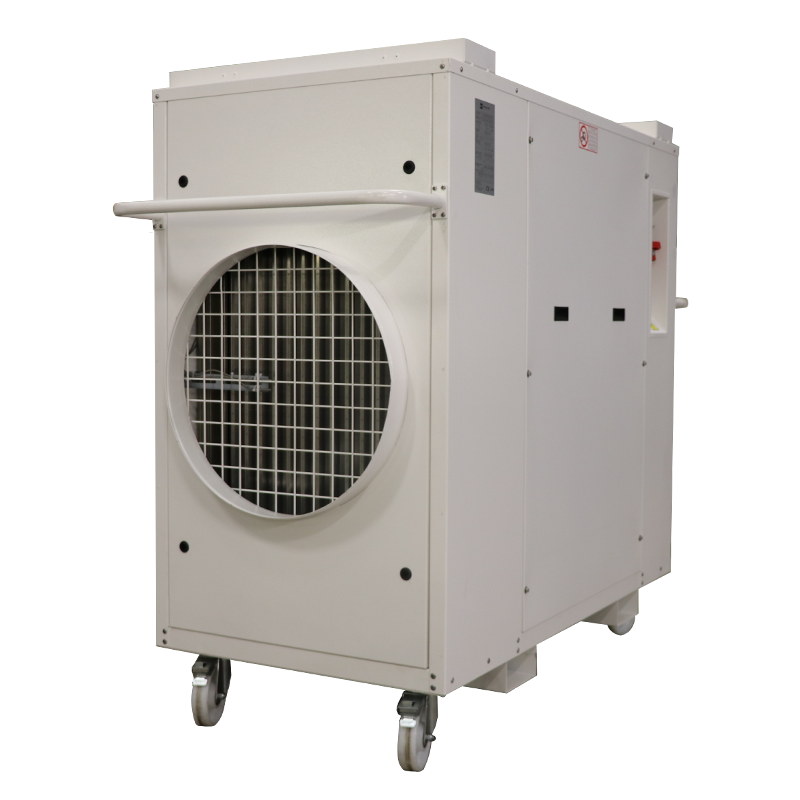

50kW Chiller FCU air handler

The 50kW FCU air handler is a lightweight and easily transportable product that can be connected to a customer’s existing chiller water system or an Andrews chiller, boiler or heat pump. Designed for use on both cooling and heating applications, this particular model features modern Inverter drive technology to provide users with a full range of speed settings as opposed to just one or two operational modes. Consuming just 1.8kW of power per hour, the 50kW FCU air handler is housed on wheels and can be delivered to site in a standard box van due to its slender frame. The unit’s recirculatory capabilities help maximise efficiency and it has been manufactured for use in a range of applications including hospitals, offices, marquees, exhibitions, archives, restaurants and many more.

Key Features

Feature

Easy installation

enabling swift connection in emergency scenarios

Quiet operation

for deployment in noise-sensitive areas

Inverter technology

flexible range of speed settings

Economical performance

ensuring low running costs

Safe and easy to use

allowing simplified operation

Environmentally-friendly

enabling greater sustainability

Reliable product

affording customer peace of mind

Robust construction

use in testing applications

Product Specification

Additional information

Nominal cooling duty	50 kW
Nominal heating duty	100 kW
Air flow (max)	11,500 m3/h
Power supply	415 V 3 ph 50 Hz N+E Run 6 A
Plug type	BS4343 5 pin 32 A
Noise level (max)	44 dBA @ 1 metre
Weight	330 kg
Dimensions (L x W x H)	1,600 x 790x 1,510 mm
Duct length (max)	40 metres
Duct size	1 x 600 mm
Average power consumption	1.8 kW/h
Integral condensate pump	Yes
Fan speed controller	Yes (Invertia drive technology)
Water connection	50 mm / 2" bauer

Downloads

Accessories

10M EXTENSION LEAD 5 PIN 32 AMP 415V 6MM DIA
20M EXTENSION LEAD 5 PIN 32 AMP 415V 6MM DIA
CONDENSATE HOSE
600MM X 8M HD VENT DUCTING WITH CLAMP
6M X 50MM HOSE WITH BAUER CONNECTIONS

Environments

Production lines
Hospitals
Shops
Cold storage facilities
Marquees
Offices
Factories
Museums
Server rooms
IT Suites
Food preparation areas
Events
Exhibition booths
Computer rooms
Archives
Temporary accommodation
Restaurants
Warehouses
Workshops
Garages
