Immediate Despatch

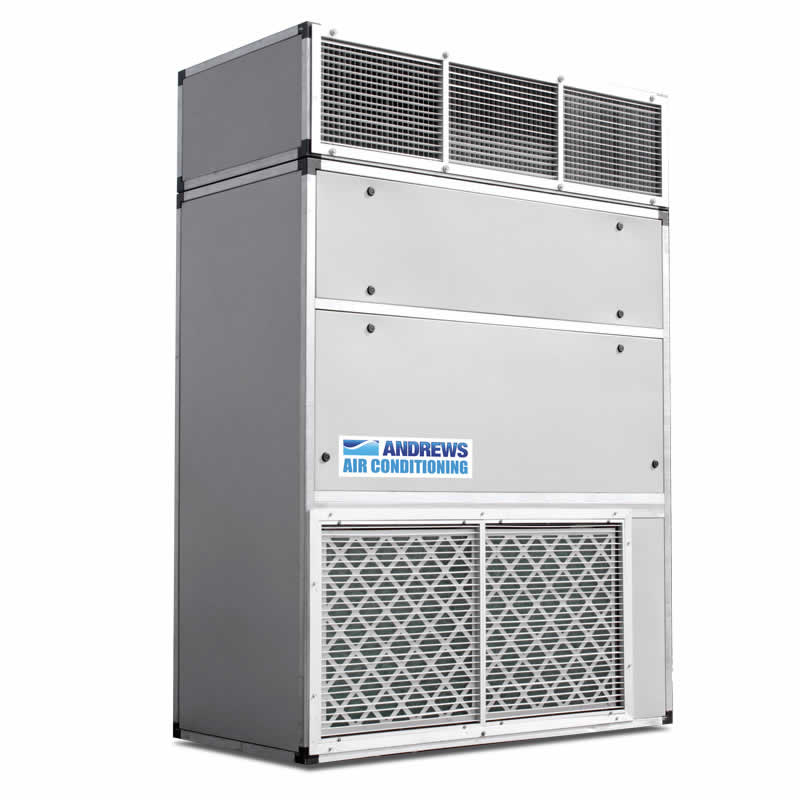

50 kW Air Handling unit can connect to your existing chilled water circuit or to an Andrews Packaged water chiller, heat pump or boiler. These units are fitted with fan speed controllers and internal condensate pumps.
Feature
| Nominal cooling duty | 50 kW |
|---|---|
| Nominal heating duty | 100 kW |
| Air flow (max) | 4500 m3/h |
| Power supply | 230 V 1 ph 50 Hz Run 4.8 A |
| Plug type | BS4343 230 V 16 A |
| Noise level (max) | 74 dBA @ 1 metre |
| Weight | 460 kg |
| Dimensions (L x W x H) | 1500 x 750 x 2250 mm (with top box) |
| Control | Manual |
| Average power consumption | 1.2 kW/h |
| Integral condensate pump | Yes |
| Fan speed controller | Yes |
10M x 230V EXTENSION LEAD 2.5MM DIA
20M x 230V EXTENSION LEAD 2.5MM DIA
CONDENSATE HOSE
600MM X 8M HD VENT DUCTING WITH CLAMP
1.25 BORE HOSE PER METER (WITH CAMLOCKS)
Food preparation areas
Shops
Cold storage facilities
Marquees
Offices
Events and Exhibitions
Computer rooms
Archives
Temporary accommodation
