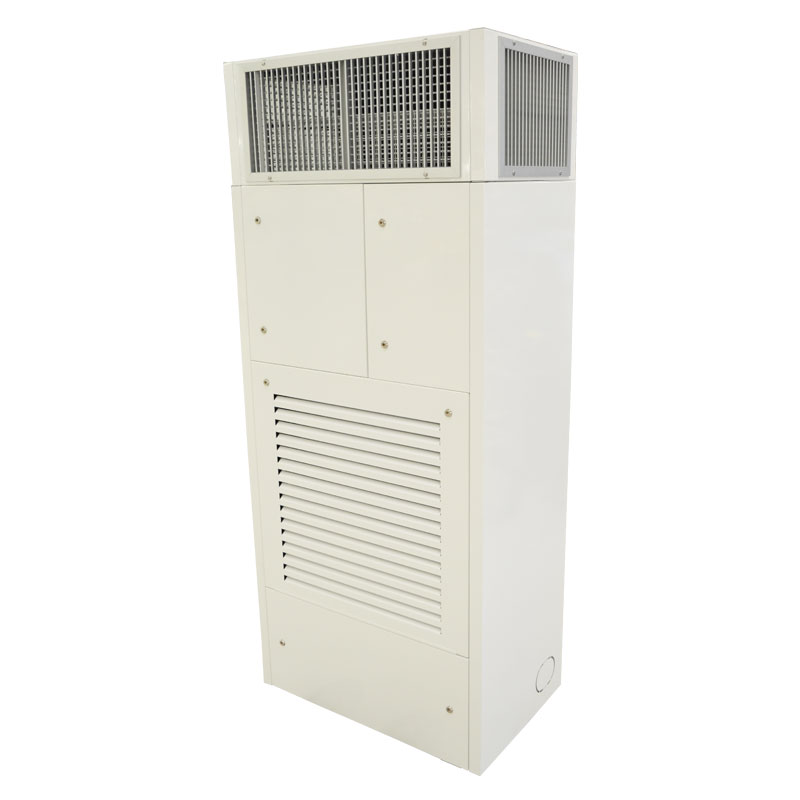

30kW Chiller Fan Coil Series 2 Unit

The 30kW fan coil is compatible with all Andrews chillers as well as any existing chiller water circuit. A nominal cooling duty of 30kW coupled with a maximum air flow of 4,197m³/h make this particular fan coil well suited to a broad range of environments. Each unit is fitted with fan speed controllers and internal condensate pumps, while an average power consumption of just 1.61kW/h allows continuous operation without the user incurring high running costs.

Key Features

Feature

Easy installation enabling swift connection in emergency scenarios

Quiet operation for deployment in noise-sensitive areas

Quick-release pipe adaptors aiding swift decommissioning process

Economical performance ensuring low running costs

Safe and easy to use allowing simplified operation

Environmentally-friendly enabling greater sustainability

Reliable product affording customer peace of mind

Robust construction facilitating use in testing applications

Product Specification

Additional information

Nominal cooling duty	30kW 102,360 btu
Air flow (max)	4,197 m³/h
Power supply	230 V 1 ph 50 Hz Run 7 A
Noise level (max)	59 dBA @ 1 metre
Weight (kg)	160 kg
Plug type	BS1363 13 A
Average power consumption	1.61kW/h
Integral condensate pump	Yes
Fan speed controller	Yes
Dimensions (L x W x H)	860 x 542 x 2,025 mm
Control	Automatic thermostat

Downloads

Accessories

10M x 230V EXTENSION LEAD 2.5MM DIA
20M x 230V EXTENSION LEAD 2.5MM DIA
CONDENSATE HOSE

Environments

Production lines
Hospitals
Shops
Cold storage facilities
Marquees
Offices
Factories
Museums
Server rooms
IT Suites
Food preparation areas
Events
Exhibition booths
Computer rooms
Archives
Temporary accommodation
Restaurants
Warehouses
Workshops
Garages
