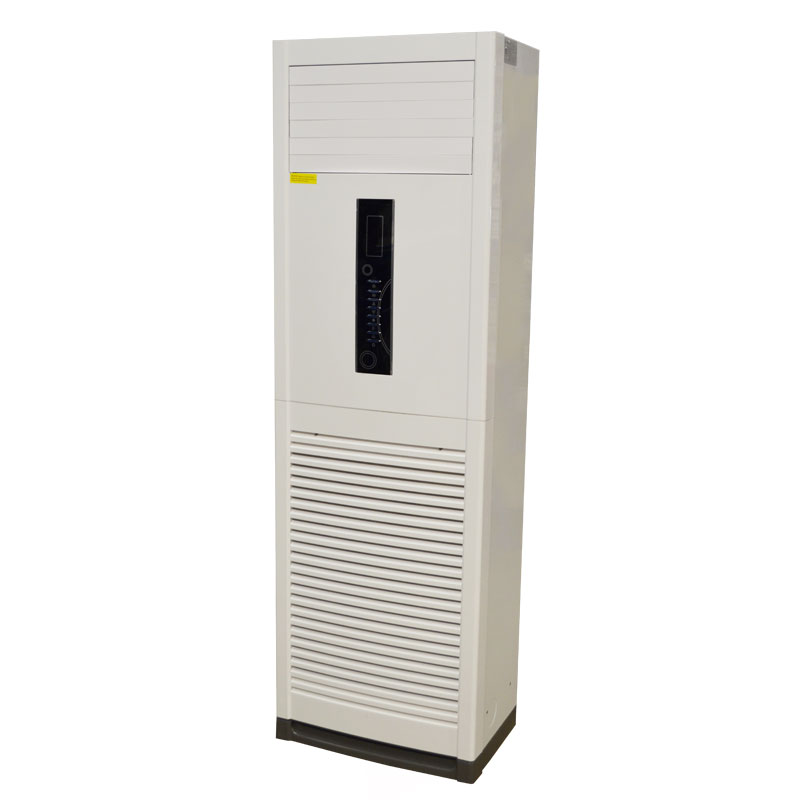

15kW Chiller Fan Coil Series 2 Unit

The 15kW fan coil can be connected to either an Andrews packaged water chiller or a customer’s existing chilled water circuit. This particular unit has a nominal cooling duty of 15kW and is capable of producing air flows of up to 2,700³/h. Like all fan coils in the Andrews fleet, these models are fitted with both internal condensate pumps and fan speed controllers.

Key Features

Feature

Easy installation enabling swift

connection in emergency scenarios

Quiet operation for deployment

in noise-sensitive areas

Quick-release pipe adaptors aiding

swift decommissioning process

Economical performance ensuring

low running costs

Safe and easy to use allowing

simplified operation

Environmentally-friendly enabling

greater sustainability

Reliable product affording

customer peace of mind

Robust construction facilitating

use in testing applications

Product Specification

Additional information

Nominal cooling duty	15 kW
Nominal heating duty	30 kW
Air flow (max)	2,700 m3 /h
Power supply	230 V 1 ph 50 Hz Run 5 A
Plug type	BS1363 13 A
Noise level (max)	51 dBA @ 1 metre
Weight	70 kg
Dimensions (L x W x H)	600 x 380 x 1,930 mm
Control	Automatic thermostat
Average power consumption	345 W/h
Integral condensate pump	Yes
Fan speed controller	Yes

Downloads

Accessories

10M x 230V EXTENSION LEAD 2.5MM DIA
20M x 230V EXTENSION LEAD 2.5MM DIA
CONDENSATE HOSE
1.25 BORE HOSE PER METER (WITH CAMLOCKS)
