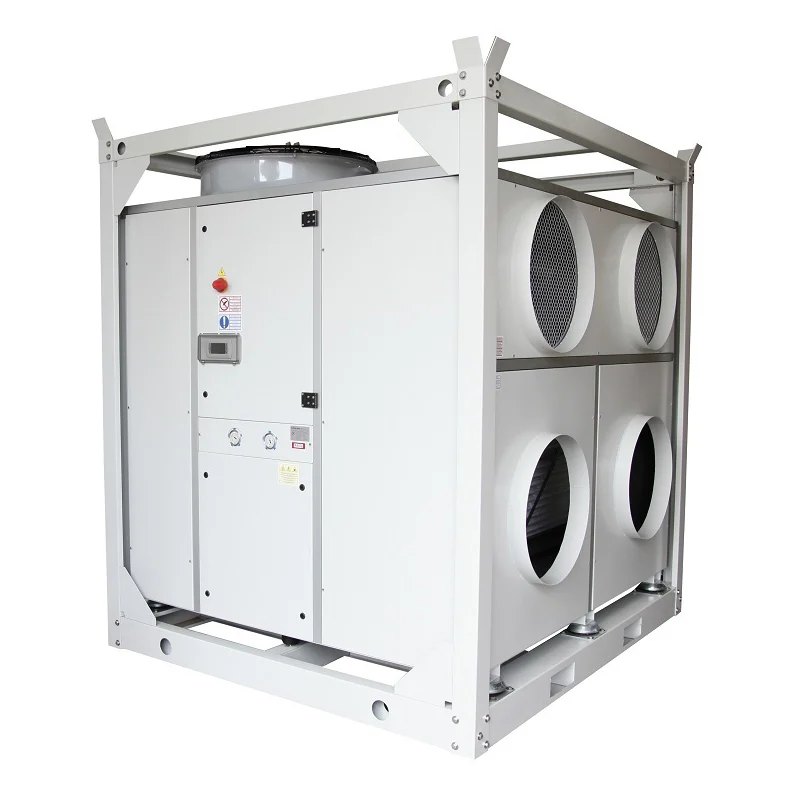

HPAC90 High Performance Air Conditioner

The HPAC90 is one of our larger, most powerful air conditioning units – offering enormous versatility by providing up to 90kW of hot or cold air. The high performance unit features two inlet and outlet portals, giving customers the option to recirculate cold air for critical cooling. The HPAC 90 is a fully portable unit and features fork lift slots and lifting to aid manoeuvrability. These high capacity units can operate unattended and are perfect for providing climate control to large volume spaces that include factories, workshops, film sets and event spaces.

Key Features

Feature

Heat Pump technology

can be used for cooling or heating

48m distribution length

for versatility of location

Automatic thermostat

can change from cooling to heating

Variable speed fan

for high capacity air flows

Very high capacity unit

90kw from a 90 amp power supply

Designed with fork lift slots and lifting eyes

for easy manoeuvrability

Compact unit

can be used in restricted areas

Air recirculation

increases efficiency by using the returned air rather than outside air

Product Specification

Additional information

Nominal cooling duty	90 kW 307,080 btu
Nominal heating duty	90 kW 307,080 btu
Air flow (max)	15000 m³/h
Typical cooled area	2000 m³
Power supply	415 V 3 ph N+E RUN 84 A
Plug type	BS4343 125 A 5 Pin
Noise level (max)	75.2 dBA @ 3 metres
Weight	1,640 kg
Dimensions (L x W x H)	2280 x 2030 x 2450 mm
Duct length (max)	48 metres
Duct Diameter	600 mm
Control	Automatic thermostat
Average power consumption	48.4 kW/h

Downloads

Accessories

10M EXT LEAD BS4343 5 PIN 125 AMP 415V 25MM DIA
20M EXT LEAD BS4343 5 PIN 125 AMP 415V 25MM DIA
600MM X 8M HEATER DUCTING WITH CLAMP

Environments

Data rooms
Storerooms
Server rooms
Marquees
Open plan areas
Large workshops
Events
TV and film studios
Factories
Film sets
