Immediate Despatch

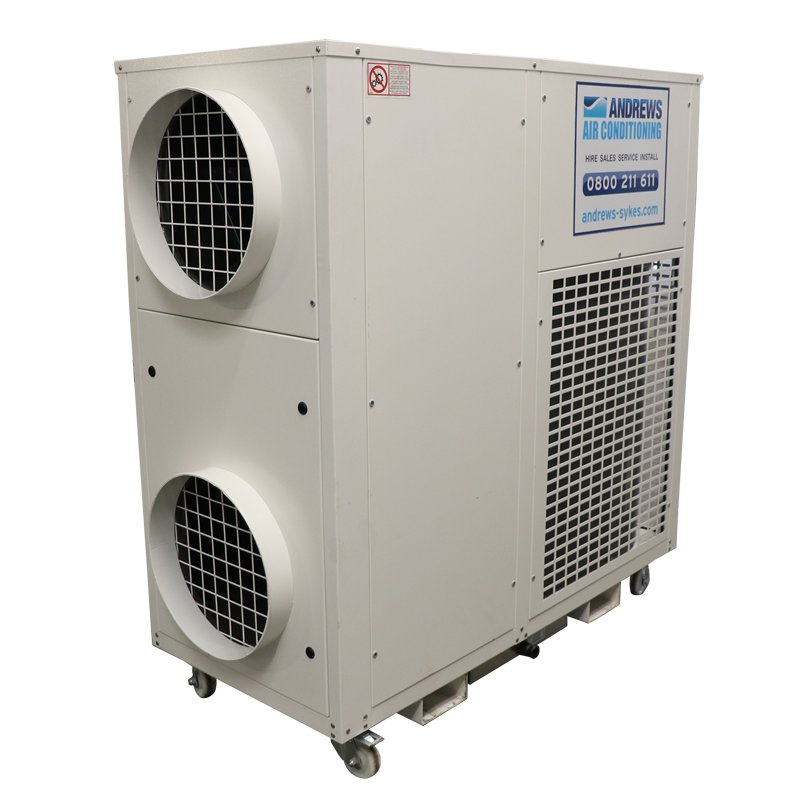

The HPAC30 is a compact and easy to manoeuvre high capacity mobile air conditioning unit with a nominal cooling capacity of 30kW. As a ’plug and play’ unit, it only requires connection to an available power supply and can be operational within minutes – needing no further intervention or attention. This particular model can generate significant volumes of cooling despite its slender 730mm frame, which enables the unit to easily fit through doorways. The HPAC30 is ideally suited to large volume spaces such as industrial processes, warehouses, factories, temporary structures, data centres and even TV & film sets.
Feature
enabling use within built-up areas
for accurate temperature control
can be used outside
can be used in restricted areas
30kW of cooling from a 32-amp power supply
increases efficiency by using the returned air rather than outside air
for quick set-up
simplifying manoeuvrability
| Nominal cooling duty | 30 kW |
|---|---|
| Air flow (max) | 5900 m³/h |
| Typical cooled area | 666 m³ |
| Power supply | 415 v 3 ph N+E RUN 22 A |
| Plug type | BS4343 32 A 5 pin |
| Noise level (max) | 64 dBA @ 3 metres |
| Weight | 435 kg |
| Dimensions (L x W x H) | 1,600 x 730 x 1,660 mm |
| Supply air duct length (max) | 8 metres |
| Return air duct length (max) | 8 metres |
| Control | Automatic thermostat |
| Average power consumption | 6.8 kW/h |
| Duct Diameter | 450 mm |
450MM x 12M HEATING DUCTING WITH CLAMP
10M EXT LEAD 5 PIN 32AMP 415V 6MM DIA
20M EXT LEAD 5 PIN 32AMP 415V 6MM DIA
Data rooms
Storerooms
Server rooms
Temporary accommodation
Workshops
Open plan areas
Marquees and events
TV and film studios
Hospitality units
Film sets
